Manufacture of the Loesche 3,2+2 Cement Mill vertical gearbox transmission set and supervision of assembly on location

03/02/2022

Colombia

Cementos Argos

ABS|MGS GEARS

Images

ABS and MGS team at Cementos San Marcos plant in the Valle del Cauca, Colombia
ABS and MGS team at Cementos San Marcos plant in the Valle del Cauca, Colombia

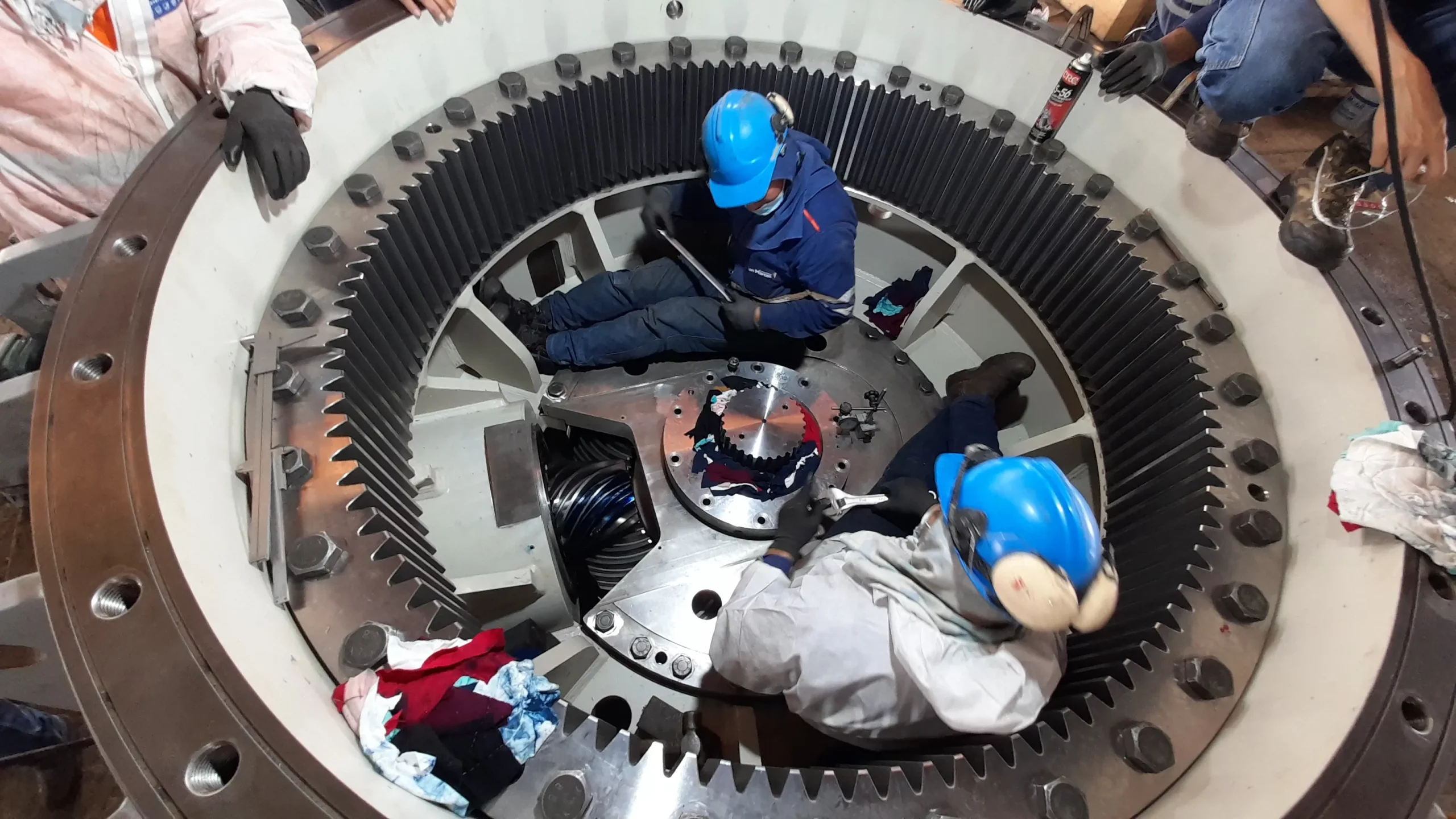

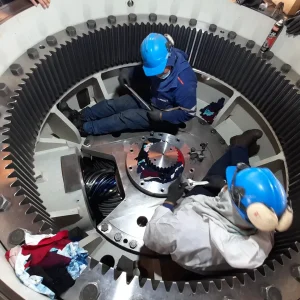

ABS and MGS Gears team assembling the new gearbox transmission set in the Cementos San Marcos plant
ABS and MGS Gears team assembling the new gearbox transmission set in the Cementos San Marcos plant
MGS Gears an ABS team supervision of assembly on Cementos San Marcos cement plant
MGS Gears an ABS team supervision of assembly on Cementos San Marcos cement plant

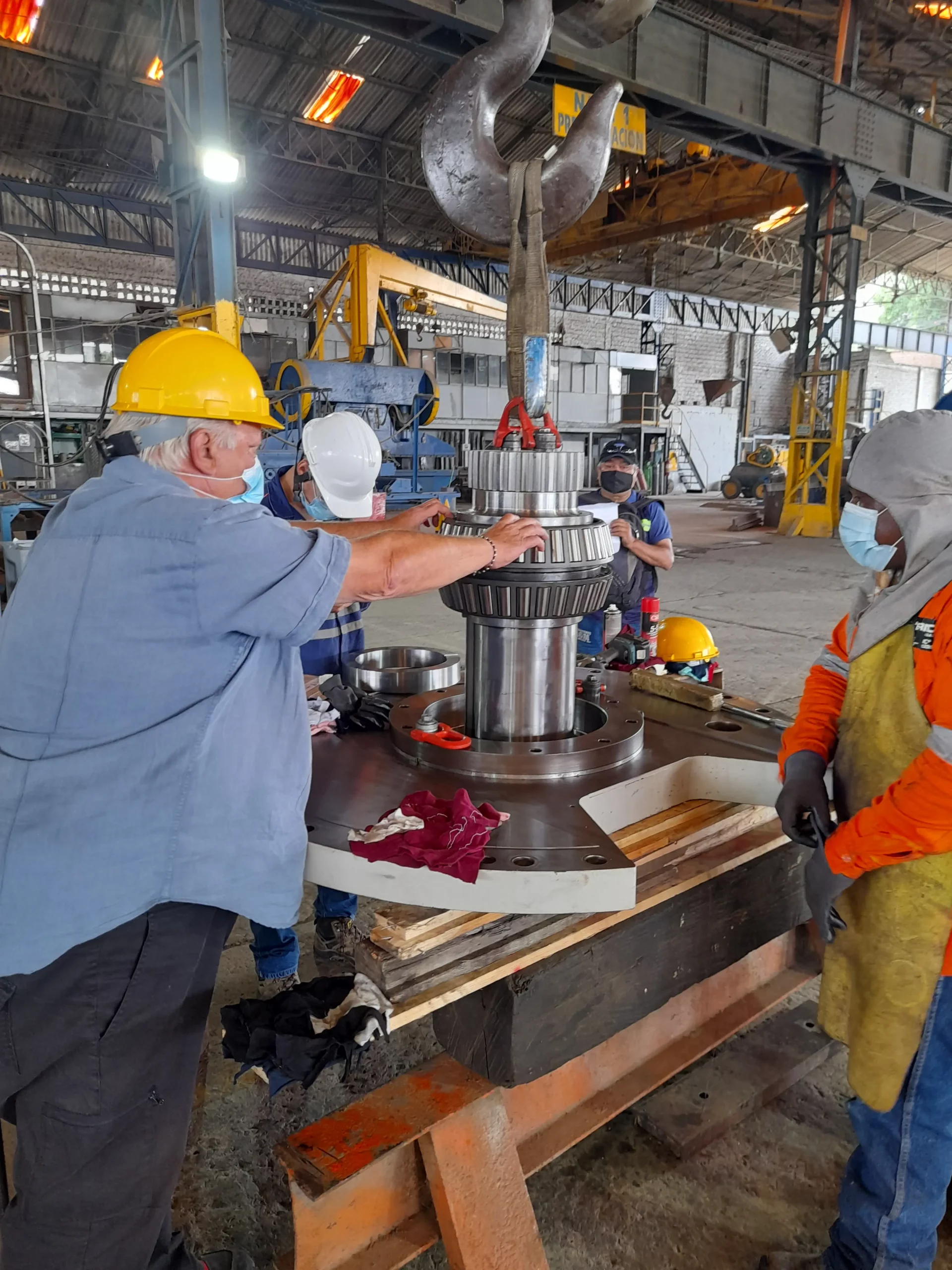

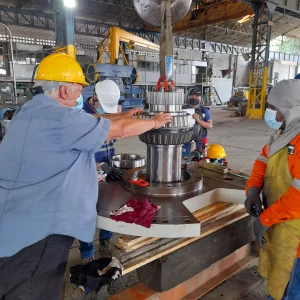

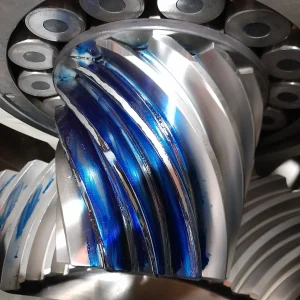

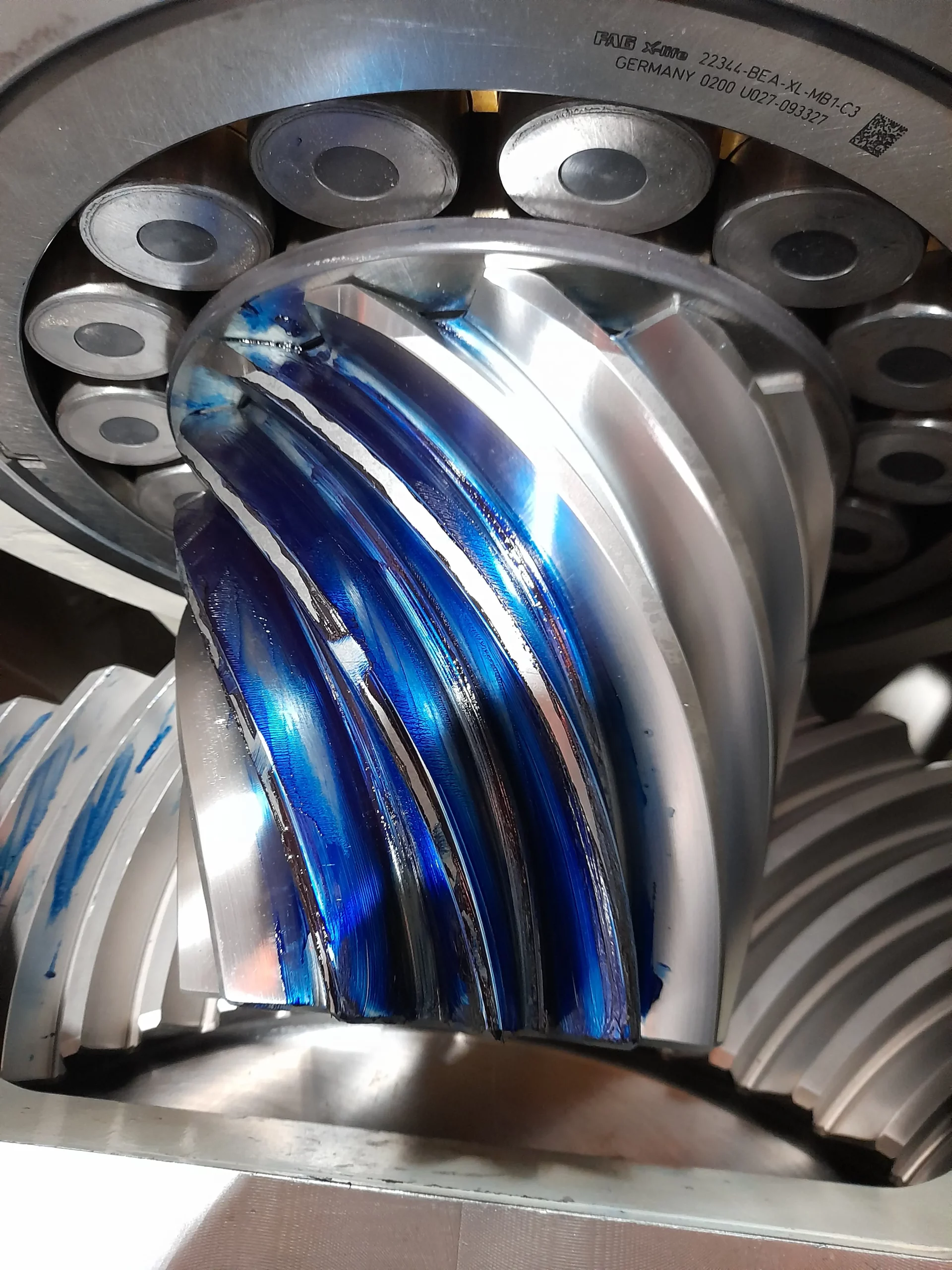

Bearing and gear detail refurbished by ABS and MGS Gears
Bearing and gear detail refurbished by ABS and MGS Gears

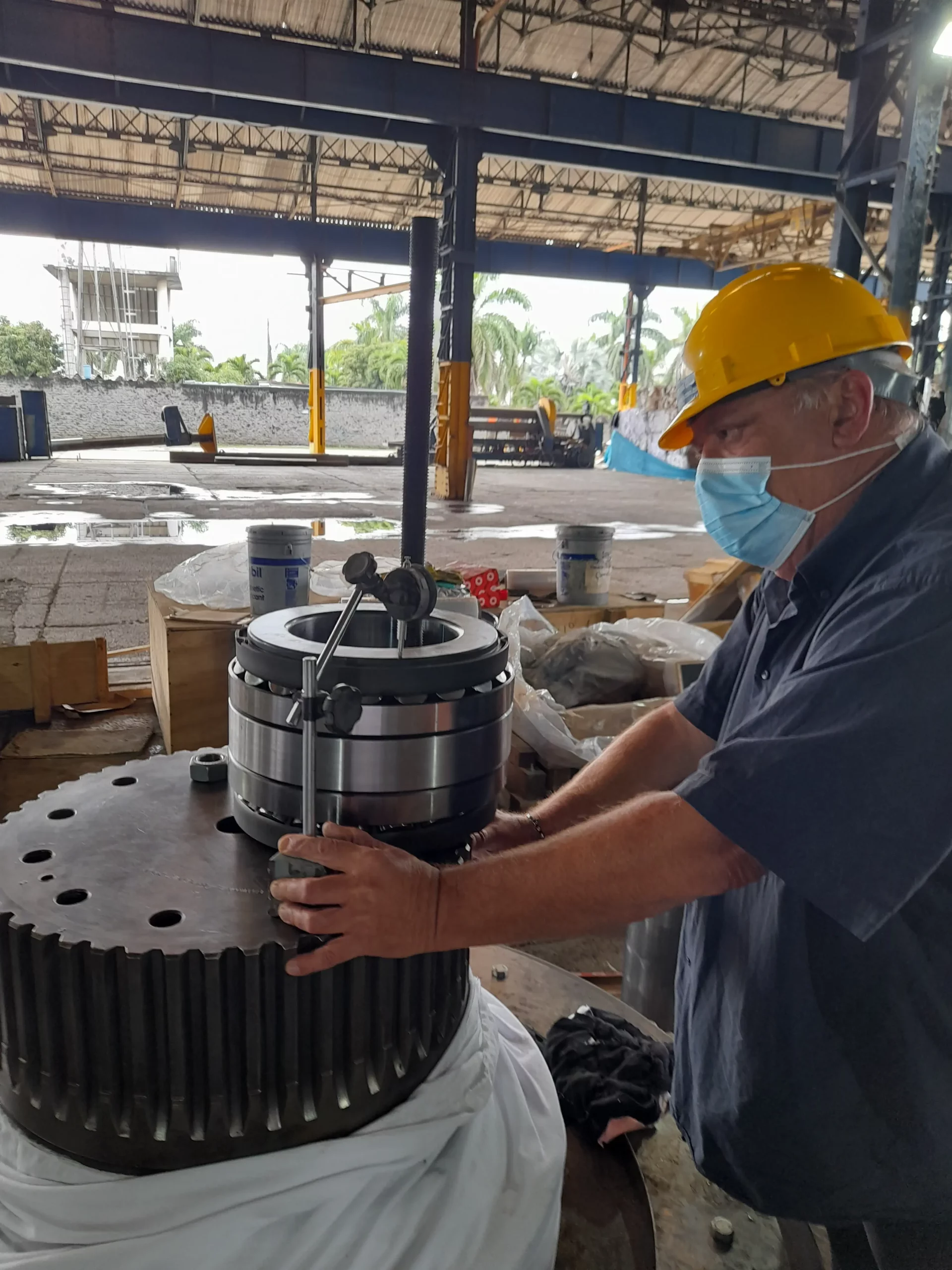

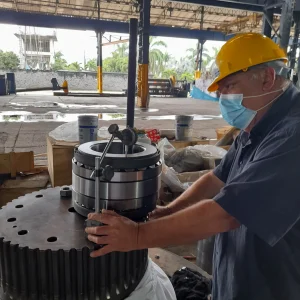

MGS Gears technician checks bearing dimensions at San Marcos cement plant
MGS Gears technician checks bearing dimensions at San Marcos cement plant

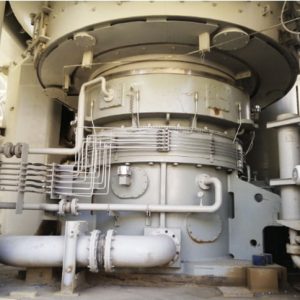

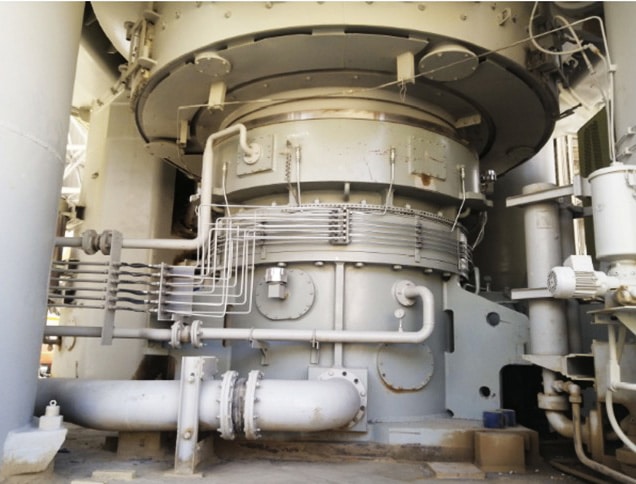

Loesche 3.2+2 Cement Mill in Cementos San Marcos cement plant
Loesche 3.2+2 Cement Mill in Cementos San Marcos cement plant

Operation Background​

The Cementos San Marcos plant, which officially began operations in 2012, is located in the municipality of Yumbo, in the town of San Marcos Valle del Cauca, Colombia. Currently, the plant has a production capacity of 12,700 tons per month of Portland Cement. Since 2016, it has had a Loesche 3.2+2 primary mill with a Santasalo vertical reducer of 1800 kW.

The Case

The Santasalo gearbox of the Loesche mill had been running at a reduced load for some time due to incipient damage to the bevel gear pair and planetary stage. This situation evolved into the catastrophic failure of the input gear set bevel gear-pair, ring gear, and sun shaft.

Technical Solution

ABS inspected all components in detail and concluded that, for an optimal solution, it recommended manufacturing a new bevel gear spar and planetary stage gear set using state-of-the-art materials and heat treatments and defining an optimized gear microgeometry that would increase the gearbox reliability. Cementos San Marcos decided to follow the recommendation and entrusted ABS with the manufacture of the entire gearbox transmission set and the on-site supervision of the assembly of its components with specialized engineers from our factory in Italy, MGS Gears.

Execution of the work

ABS programmed the following sequence of works:

  • The inspection of all the components associated with the failure.
  • Dimensional survey on site.
  • Ship the damaged parts to the MGS Gears factory in Italy for analysis and dimensional survey.
  • Advisory service for the assembly of the parts and verification of fine adjustments to guarantee the reliability of the gearbox.

Once all the gearbox parts were manufactured and tested in our factory in Italy, they were sent to the plant in Colombia, and the assembly was planned, establishing 12 days of joint work between ABS and Cementos San Marcos. It is worth highlighting the magnificent collaborative environment between both teams and the level of intensity, precision, and detail necessary to achieve the adjustments and tolerances required by the AGMA standard.

Another success story

When you have the experience, capacity, and predisposition to collaborate with highly qualified professionals and work actively to integrate and analyze the different visions, there is only one result: the achievement of the objectives set in the estimated time. Cementos San Marcos now has wholly refurbished equipment, repowered and ready to perform at full capacity and with full guarantees.

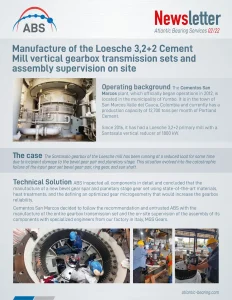

Download it as a Newsletter
